Magnetic Level Gauges

KLINGER offers a dedicated range of magnetic level gauges, engineered for accurate and reliable liquid level measurement in industrial applications.

Magnetic level gauges operate on the principle of communicating vessels, ensuring that the liquid level within the measuring chamber corresponds to the level inside the connected tank.

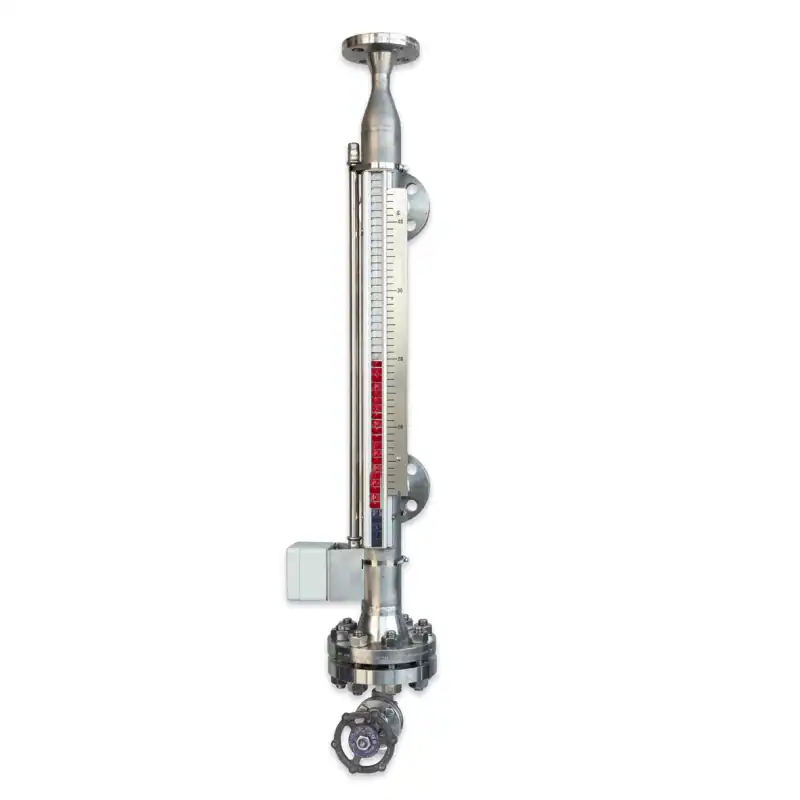

A float containing an enclosed ring magnet moves freely within the measuring chamber, rising and falling with the liquid level. The magnetic field activates indicator flaps mounted externally along the measuring chamber, providing a clear visual indication of the liquid level.



The float is depressurised by design and has no magnetic or mechanical guidance. This provides an alternative to floats that are pre-pressurised with gas.



Selecting the correct float depends on several process conditions, including:

  • Process medium
  • Specific gravity (SG)
  • Operating pressure
  • Operating temperature

_

Indicator Display and Monitoring Options



The indicator rail features individual flaps containing enclosed permanent magnets, providing resistance to shocks, vibrations and high temperatures. The display is available with plastic or stainless steel housing, with indicator flaps available in plastic, aluminium or stainless steel.



The flaps feature contrasting red and white sides, allowing the liquid level to be clearly identified from a distance and in low-light environments.



Additional monitoring and control options include:

  • Magnetic switches: Provide output signals for level monitoring and can be combined to support pump control and high/low-level alarms.
  • Transmitters: Provide a 4โ€“20 mA output signal for continuous level monitoring.
  • Level indicators: Optional pointers allow specific level limits to be marked on the display.
  • Interface measurement: Suitable for indicating the interface between two different liquids within a tank.

_

Magnetic Level Gauge Materials and Special Designs



A range of materials and customised designs are available to accommodate different process conditions and installation requirements.



Options include:

  • E-CTFE and PFA coatings or linings.
  • Steam-jacketed designs.
  • Plastic, Hastelloy, Monel, Titanium and 254SMO (6Mo) construction.

_

Magnetic Level Gauge Models



Five standard magnetic level gauge models are available, each designed for different installation arrangements and applications:

  • Model D: Features two or more flange connections for side-mounted installation on tanks. Suitable for a wide range of applications, including condensate tanks.
  • Model F: Features a single process connection at the bottom, designed for top-mounted installation on tanks. Commonly used on underground storage tanks.
  • Model M: Features two or more process connections for side-mounted installation. Particularly suitable for applications involving volatile liquids.
  • Model R: Features two process connections at each end, allowing installation between two pipes.
  • Model L: Features a single process connection for side-mounted installation on buffer tanks. Commonly used on board ships for day tanks.
