Insulation Sets

Insulation Sets are specified in order to offer galvanic protection where two dissimilar flange materials are mated together. Preventing corrosion by removing the possibility of the systems acting as a galvanic cell.

GPT Logo

KLINGER insulation sets are designed to provide electrical isolation between connected flange materials, helping protect piping systems against galvanic corrosion and maintain long-term sealing integrity.

ย

When dissimilar metals are connected in the presence of an electrolyte, galvanic corrosion can occur, potentially causing deterioration of flange components and reducing the service life of the installation. Insulation sets help prevent this process by electrically separating the connected flange faces, interrupting the electrical path between dissimilar materials.

ย

In addition to corrosion prevention, insulation sets play an important role in cathodic protection systems. By isolating sections of protected pipework, they help prevent unwanted electrical current flow between connected components, supporting the effectiveness of the wider corrosion protection strategy.

ย

Why Are Insulation Sets Important?

ย

Electrical isolation is an important consideration when connecting different materials within industrial piping systems. Without suitable insulation, electrical current can pass between dissimilar metals, increasing the risk of galvanic corrosion and potential damage to critical components.

ย

By creating an electrical barrier between flange connections, insulation sets help protect pipework and associated equipment. They also support the performance of cathodic protection systems by limiting unwanted electrical continuity between sections of a pipeline.

ย

Key benefits of insulation sets include:

  • Galvanic Corrosion Prevention: Provide electrical separation between dissimilar flange materials to help reduce the risk of galvanic corrosion.

  • Electrical Isolation: Interrupt unwanted electrical current flow between connected piping components.

  • Cathodic Protection: Support corrosion protection systems by electrically isolating sections of pipework.

  • Sealing Integrity: Help maintain reliable flange connections while providing electrical insulation.

  • Component Protection: Help protect critical piping components and support extended service life.

ย

KLINGER Insulation Set Ranges

ย

KLINGER offers two insulation set solutions, the C4430 and Shield ranges, designed to provide reliable electrical insulation and sealing performance across different application requirements.

ย

Both ranges are supplied complete with insulating sleeves and washers, providing the necessary components for flange isolation. These components work together to electrically separate the flange connection while supporting reliable sealing performance.

ย

C4430 Insulation Sets

The KLINGER C4430 insulation set provides electrical isolation between connected flange materials, helping prevent galvanic corrosion and support cathodic protection systems.

ย

Designed for applications where electrical separation is required, the C4430 range provides a practical solution for maintaining isolation across flange connections. By helping prevent unwanted electrical continuity, these insulation sets support the protection of piping systems and associated equipment.

ย

Shield Insulation Sets

The KLINGER Shield insulation set range provides electrical isolation alongside additional fire safety considerations. Shield sets are certified to API 6FB Fire Safe requirements, making them suitable for applications where fire safety performance is an important consideration.

ย

Like the C4430 range, Shield insulation sets are supplied with insulating sleeves and washers to support electrical isolation and reliable flange assembly.

ย

Insulation Solutions from KLINGER UK

ย

Selecting the correct insulation set is important for achieving effective electrical isolation and maintaining flange integrity. Application requirements, flange specifications and operating conditions should all be considered when choosing a suitable solution.

ย

KLINGER UK offers C4430 and Shield insulation sets to support a variety of industrial piping applications. Our team can help identify the appropriate solution based on your requirements, helping you maintain effective electrical isolation and protect critical piping infrastructure.

ย

Contact KLINGER UK to discuss your application and find the right insulation set for your piping system.

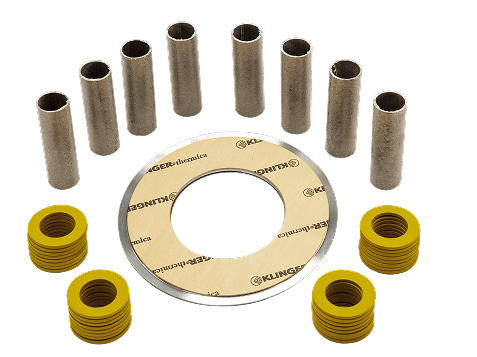

slip plate cutout grey 2

Explore our range of Insulation Sets:

KLINGER Isolation Kit

KLINGER Isolation Kit



Insulation Sets are specified in order to offer galvanic protection where two dissimilar flange materials are mated together. Preventing corrosion by removing the possibility of the systems acting as a galvanic cell. The sets also offer cathodic protection by isolating protected piping systems.



Read more

Evolution

EVOLUTIONยฎ



EVOLUTIONยฎ is a patented product that is the first of its kind to be a fully encapsulated isolating gasket.
The thinner, 1/8โ€ (3mm) design minimizes the difficulties often encountered while attempting to install thicker isolating gaskets.



Read more

Pikotekยฎ VCSยฎ

Pikotekยฎ VCSยฎ



The Pikotekยฎ VCSยฎ gasket provides exceptional insulating and general sealing performance in aggressive material applications. The VCS gasket is suitable in all services up to and including ANSI 2500# and API 10,000# classes.



Read more

Pikotekยฎ PGMTM

Pikotekยฎ PGMTM



The PGEโ„ข was designed to give operators an alternative to the failure prone phenolic-based isolating gaskets. The unique design of the PGEโ„ข system incorporates patented overlapping and offsetting seal grooves.



Read more

Corrosion Protection System

KLINGER UK offers an integrated corrosion protection solution designed to safeguard your critical flanges.
Combining insulation sets, precision gaskets, and spray shields, we help prevent galvanic corrosion,
enhance safety, and lower maintenance costs, ensuring long-term operational integrity.

Contact us
